Description

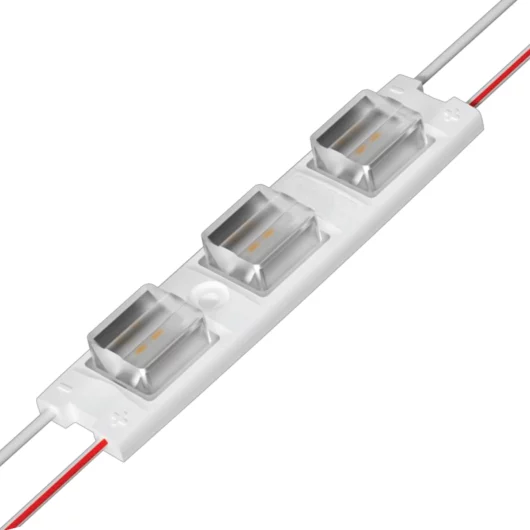

The EagleEye LED Light Module is designed to revolutionise ultra-thin side-lit LED light boxes. Offering exceptional cold white illumination at 6500K, this module ensures consistent brightness and superior uniformity without hotspots. Perfect for light boxes as slim as 60mm and up to 1.5m wide or tall, EagleEye delivers unmatched clarity and efficiency.
Key Features:
- Advanced optical lens design guarantees even light distribution.
- Ideal for ultra-thin side-lit light boxes between 60mm and 150mm depth.
- Operates at just 2.4W per module, delivering 130 lumens per watt.
- Withstands -25°C to +55°C temperatures and protected by an IP66 rating.
- Supports dimmable operation and modular connectivity for flexible setups.
Recommended applications:
- Sleek signage and illuminated displays.
- Edge lighting for ultra-thin or large light boxes.
With its robust design and cutting-edge performance, the EagleEye is your go-to solution for flawless illumination in any professional display.
Characteristics:
| Viewing Angle | 15° x 85° |
| Luminous Flux | 312 lm/module |
| Quantity | 3 LED/module |
| Size | 96mmL*22mmW*11.7mmH |
| Certification | IP66 |
Eurotech LED Box module calculator
Width: cm
Height: cm
Height: cm
Depth: cm
| Side lit Modules | |
|---|---|
| 1.5w | |
| 3w | |
| total wattage | |
| 30w transformer | |
| 60w transformer | |
| 150w transformer |
| 1.2w Modules | |
|---|---|
| 1.2w modules | |
| total wattage | |
| 30w transformer | |
| 60w transformer | |
| 150w transformer |
| .36w Modules | |
|---|---|
| .36w modules | |
| total wattage | |
| 30w transformer | |
| 60w transformer | |
| 150w transformer |
| .72w Modules | |
|---|---|
| .72w modules | |
| total wattage | |
| 30w transformer | |
| 60w transformer | |
| 150w transformer |
TIPS
- We recommend the transformer power to be 20% higher than linked LED watt value
- Note, the colour of the print can effect final results
- Wires between modules should never be taut
- We suggest to also use glue along with the modules double sided tape
